Reverse Engineering Services - Part and Product Reverse Engineering
Do you want manufacturing drawings of an existing product/part to make some design changes? Is the local 3D scanning provider is charging you more to reverse engineer an object? Send us your object & we will have manufacturing drawings prepared for you at economic cost!
CAD Reverse Engineering Services include:
- 3D Laser Scanning
- CMM Scanning and CMM Inspection
- Capture an object's original design intent in CAD
- 3D Scan to CAD conversion
- Digitizing Services for 3D CAD Modeling
- Rapid Prototype Development
- Plastic Mold CAD Reverse Engineering
- Redesigning of a product without manufacturing defects
- Manufacturing drawings for production/prototyping

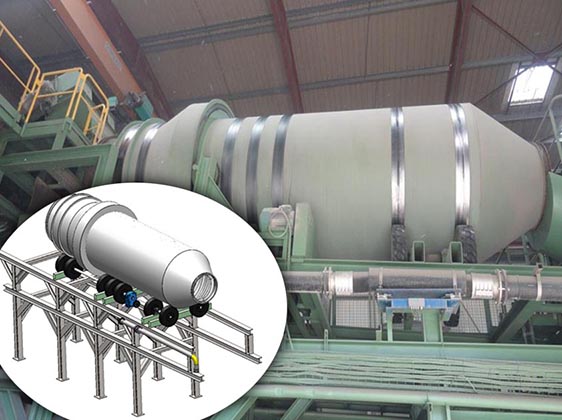

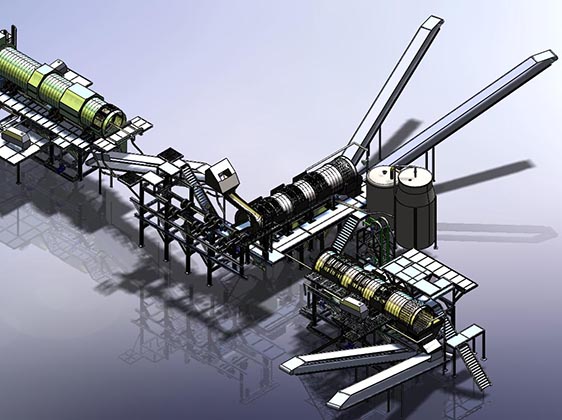

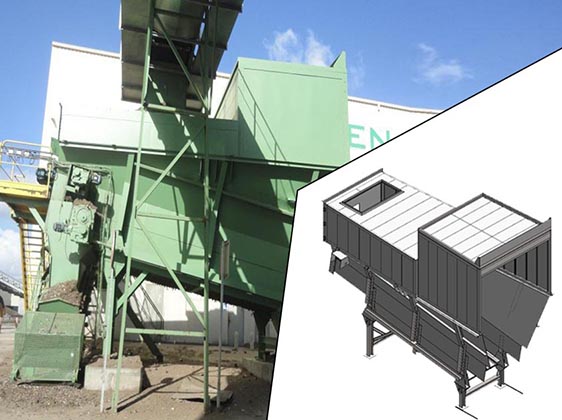

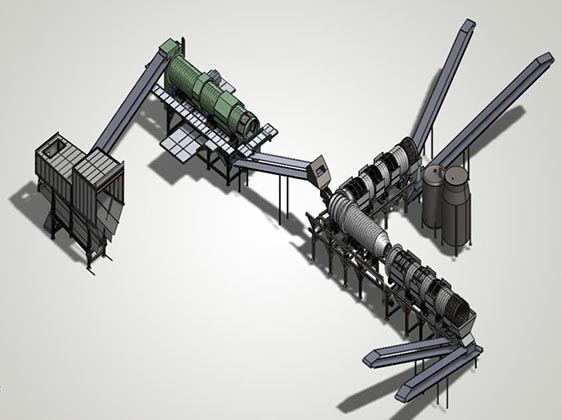

Samples
Our Infrastructure:
- FARO Laser camera for multitude scanning
- 3D Laser Scanners
- SolidWorks, Inventor, CATIA, Pro Engineer tools
Industries we specialize at:
- Medical devices
- Automotive castings
- Aerospace components
- Injection Molded products
- Machine tools

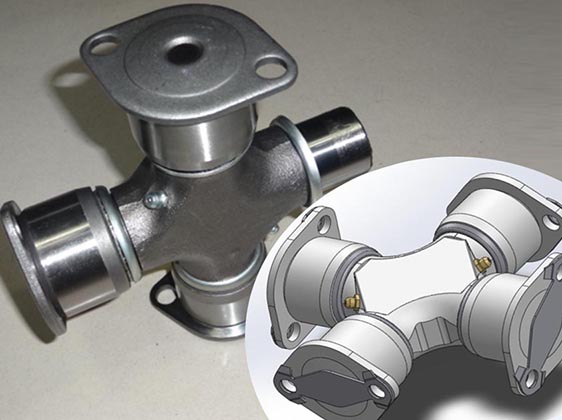

- Automobile parts
We have been providing top-class 3D Scanning, 3D modeling, CMM inspection and Reverse engineering services to a variety of industries worldwide with key markets of USA, Europe, Canada and Australia for over 10 years. Our consultative, problem solving approach to any potential issue helps you achieve your goal and deliver exactly what you need. Our engineers have experience in part reverse engineering, part scanning and product duplication to deliver CAD files in any format you need.
We can generate complete 2D drawings and 3D CAD data of an existing product/part including all the surface geometry with our 3D Scanning machine with high precision. Benefits of our Reverse Engineering services include reduced product development time, less cost and complete duplication of original part, component, or assembly in terms of form, fit and functionality. Our Mechanical engineers has vast experience in Product design and development, Prototyping, Manufacturing Design, Finite Elemental Analysis and CAD Modeling.
If you have any queries or want to discuss your design issues with our engineer, please feel free to contact us. Request FREE quotes at info@cadoutsourcingservices.com.
